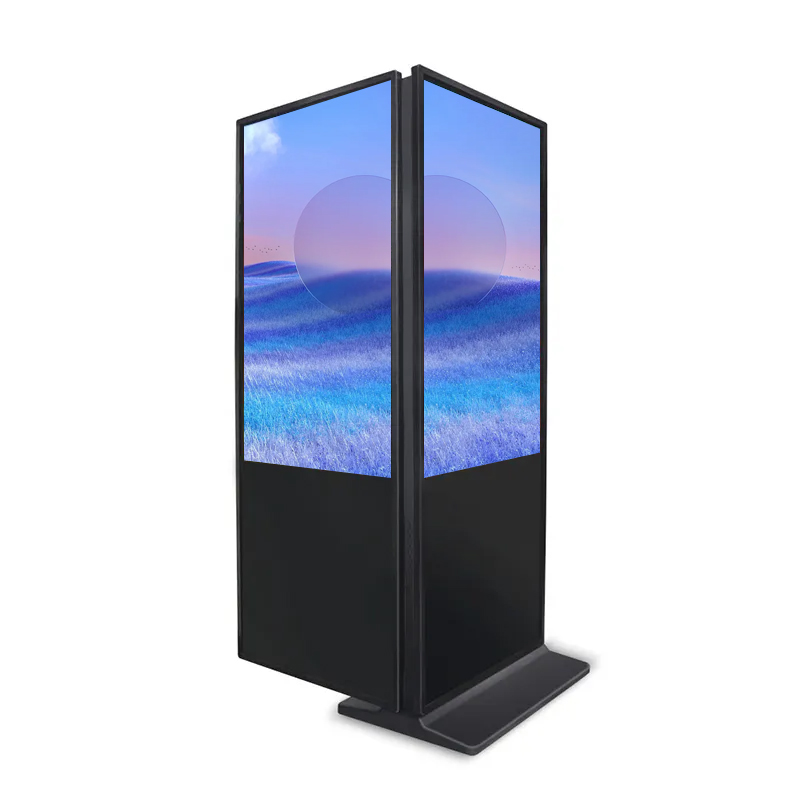

Prolab floor stand double sided

Product Specification

Introductions

This product is an advertising playback terminal device with double-sided display. The shell is made of all-aluminum material, which has good heat dissipation effect, no need for fan heat dissipation, and zero noise. It has the characteristics of waterproof, dustproof, moisture-proof and explosion-proof. Various communication interfaces are abundant. It can be applied to advertising broadcasting in airports, stations, shopping malls and other places.

● High performance: RK3288 chip quad-core ARM Cortex-A17 architecture processor is adopted, the main frequency can be as high as 1.8GHz, compared with common single-core, dual-core and quad-core solutions in the market. A qualitative leap in performance, able to play various formats

Clear video screen, capable of handling complex interactive operations.

● High stability: In terms of hardware and software, we add our own unique technology to ensure the stability of the product, so that the final product can reach 7*24 hours unattended.

● High integration: Android all-in-one integrates Ethernet, Wi-Fi, power amplifier, TF expansion card, USB port, IR remote control function

● High scalability. 6 USB (4 pins, 2 standard), 2 serial ports + 1 scalable debug serial port, five IO

The expansion port can expand more peripheral devices.

● High-definition: Support up to 3840*2160 high-definition video and picture playback.

● Perfect support for multi-point infrared touch, multi-point capacitive touch, multi-point nano film touch, multi-point acoustic wave touch, multi-point light Learning touch and other mainstream touch screen functions.

 Parameters

DisplayDisplay size55 inches（All New A+ panel）

Ratio16：9

Resolution1920(RGB)×1080[FHD] 51PPI

Display area1209.6× 680.4 mm (H×V)

Display color16.7M

Brightness450cd/㎡

Contrast1400 : 1 (Typ.)

Viewing angle178/178°

Pixel Pitch(mm)0.630mm (H) x 0.630mm (W)

Response time8 (Typ.)(G to G)

Life(hrs)60,000(hrs)

SystemSystemAndroid 7.1

Motherboard

solution

RK3288 dual LVDS, Bluetooth

CPUQuad core 1.8GHz Cortex-A17
