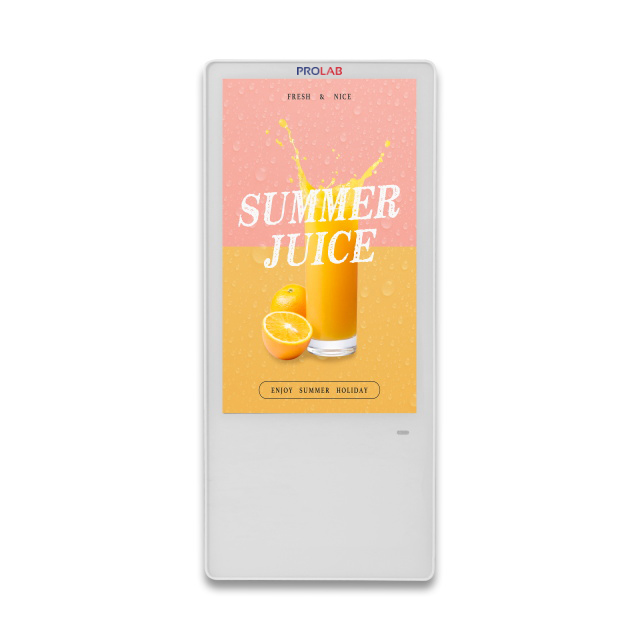

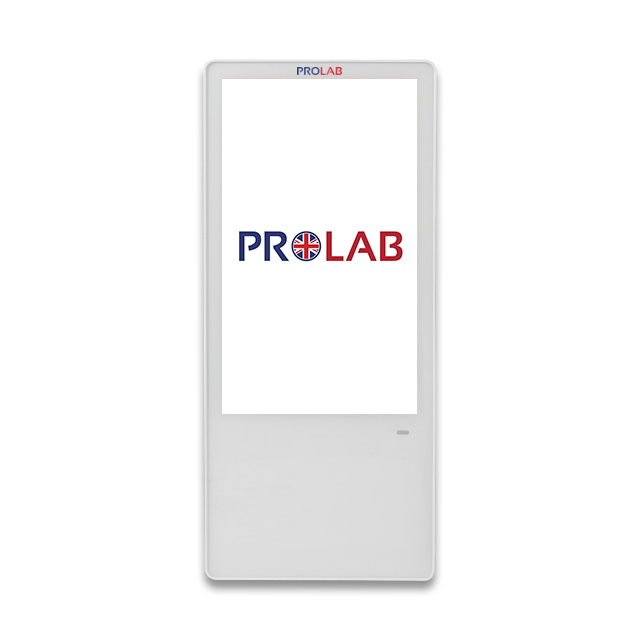

Prolab Elevator advertising Led

product description

● This smart display terminal display device adopts an industrial-grade product design concept. It has a beautiful and thin body, stable performance, and can support 7*24 hours of uninterrupted power operation.

● Using high-grade high-definition LCD display module, it has high brightness, delicate picture, high color reproduction, and can achieve high-quality picture output display.

● It can be equipped with intelligent Andorra or stand-alone operating system, with simple operation and powerful functions to meet the diverse needs of users.

● It can realize remote release/import of programs from USB disk in the background, without personnel maintenance, saving time, worry and effort, and low installation and maintenance costs.

● It has a wide range of application scenarios and is a high-end building display device that needs audio and video playback in elevators in various scenarios.

Display parameters

Module level Brand new A+ LCD module

Panel size 21.5 inches

resolution 1920*1080

Viewing angle 89/89/89/89

Display area 476*268mm

Zoom 16:9

screen brightness ≥250cd/m2 (typical value)

Backlight type W-LED

Contrast 1000:1

Refresh frequency 60HZ

Pixel layout RGB vertical strip

Support color 16.7M (8-bit)

Body parameters

can choose colour white

Border material Aluminum profile

Body material Hardware cold rolled plate

Surface material tempered glass

Packaging material Neutral ordinary packaging

Net weight of fuselage 7kg

Including packaging weight 8kg _

Dimensions 740*316*26.3mm

Package Size 800*370*10mm

Rack type hanging board

Installation method Wall installation

Anti-theft method Equipped with anti-theft lock to prevent equipment from being stolen

System solutions

Online version system version Android 7.1

motherboard chipAllwinner A40

running memoryDDR3 1GB

storage memoryEMMC FLASH 16GB

system portDC*1 USB*2 TF card holder*1 RJ45*1 Headphone holder*1 HDMI*1

More configurationsRK3128/RK3288/RK3568

System functions

Memory expansion Supports up to 32GB TF card expansion

Pre-installed software Information publishing software/can support third-party software

Telecommunication Support wired network connection and wireless network connection optional 3G/4G

video decoding Supports up to 1080P video and picture decoding and playback

Boot mode Supports power-on self-start, timer switch, network wake-up, and remote control switch

language selection Supports Chinese, Traditional Chinese, English, French, German, Japanese, Korean, and other languages

audio function Built-in two high-quality tweeters

Split screen display Can support arbitrary cutting of the screen, free combination and division of playback areas, etc.

Mouse function Supports inserting mouse and keyboard for use

Stand-alone function Support USB program import and playback

System Upgrade Support system background upgrade and local upgrade

Play function Supports videos, pictures, PPT, web pages, mixed playback, applications, weather, clock, etc.

Image Format Supports image files in JPG, BMP, GIF and PNG formats

video format Can support VOB, AVI, WMV, MOV, MKV, RMVB and FLV format audio and video files

audio format Supports audio files in MP3, AAC, APE, WMA, MAV and other formats

Terminal management Support local and remote control terminals

hierarchical management Administrators can create new hierarchical roles and edit and modify hierarchical permissions.

More features Please contact the manufacturer for technical service support or refer to the manual

Electrical performance

Input voltage AC110-220V /DC12V

Standby power ≦1W

rated power ≦ 40W _

Usage environment Temperature -0℃~ 60 ℃/Humidity 10%RH~90%RH

Storage environment Temperature -5℃~ 65 ℃/Humidity 10%RH~90%RH

Packing List

The whole machine 1 set

remote control 1 serving

WIFI antenna 1

Certificate/warranty card 1 serving

Wall mounting screws 4 sets
