0558842084Highlights
| Module | 32M1 | |
| Display | Effective display area | 698.4(H) × 392.85 (V) (mm) |
| Zoom | 16:9 | |
| brightness | 350cd/㎡ | |
| contrast | 1200:1 | |
| color | 8bits-true（16.7M） | |
| Backlight type | ELED | |
| maximum viewing angle | 178° | |
| resolution | 1920 * 1080 | |
| Machine | input port | USB2.0*2，HDMI*1，T-Flash*1，RJ-45 |
| output port | Earphone*1, | |
| Sound output power | 2X10W | |
| WiFi | 2.4G+5G, | |
| Bluetooth | Supports Bluetooth 5.0 | |
| Overall power consumption | ≤45W | |
| Standby power consumption | ≤0.5W | |
| Machine life | 30000小时 | |
| input power | 24V/5A (battery charging) | |
| Overall size | 735.25 (L) x 429.65 (H) x 54.72 (D) mm | |
| 1406.1 (L) x 735.25 (H) x 428.5 (D) mm (including bracket) | ||
| Package Size | 876*177.8*550MM | |
| net weight | 7.5KG | |
| gross weight | 10.0KG | |
| working environment | Working temperature: 0℃～50℃; Working humidity: 10%RH～80%RH; | |
| storage environment | Storage temperature: -20°C ~ 60°C; Storage humidity: 10%RH ~ 90%RH; | |
| Android System | CPU | Hi3751V352E, ARM CA53x4 |
| GPU | ARM Mali450 MP2 | |
| RAM | 2G | |
| FLASH | 16G | |
| android version | Android 9.0 | |
| Support APK | TV, fitness, wireless projection, whiteboard software | |
| OSD language | Chinese English | |
| Mobile Bracket | height adjustment | 170mm |
| angle | Rotation: Clockwise 90°/Counterclockwise 90°, Tilt: Up 22°/Down 22° | |

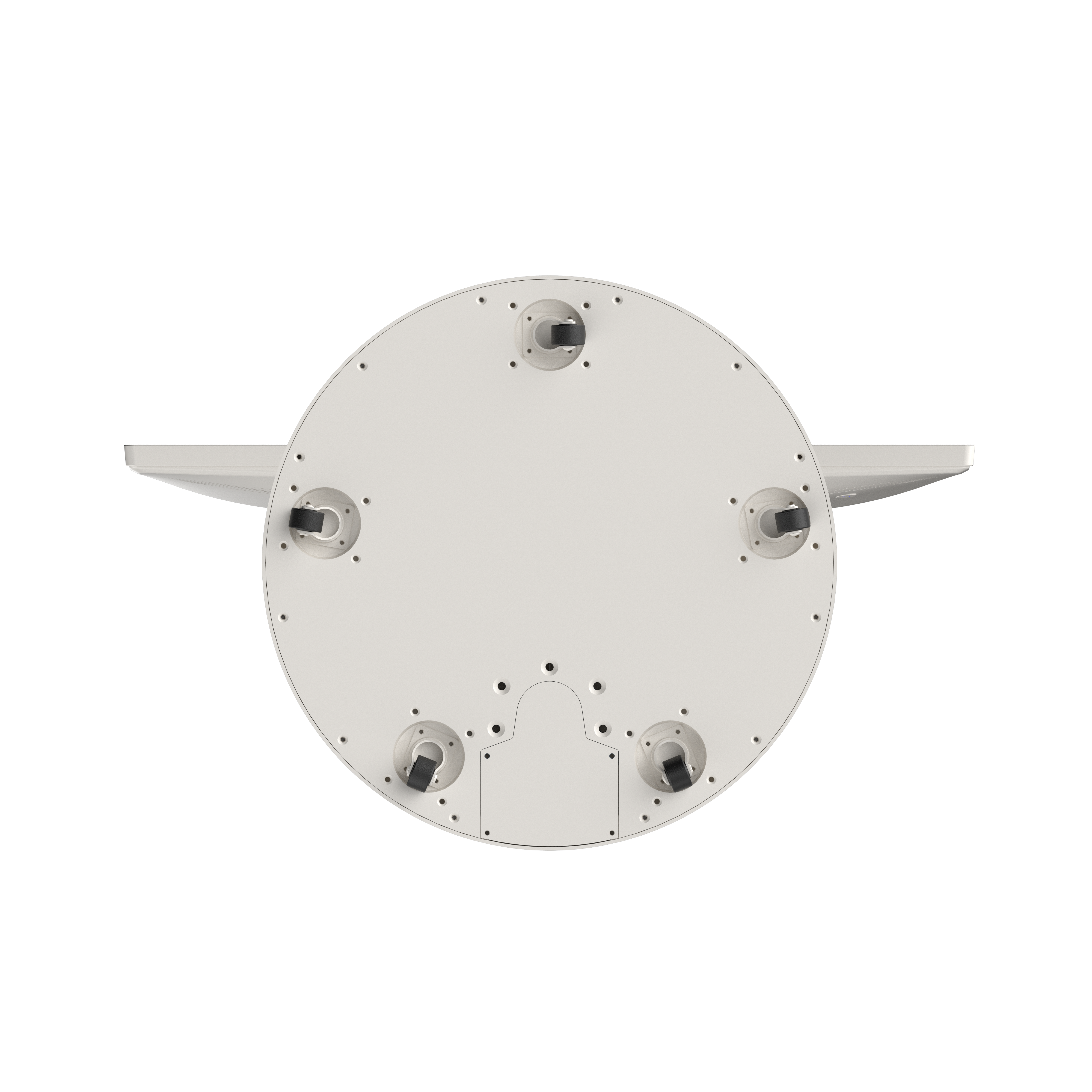

| casters | 1 inch universal wheel*5 | |
| net weight | 3.25KG | |
| gross weight | 5.55KG | |
| Pole packing size | 1320*284*154MM | |
| net weight | 8.45KG | |
| gross weight | 9.85KG | |
| Chassis packing size | 504*129*504MM | |
| switch/indicator | Red and blue colors, charging blue flashes, fully charged blue light, half-battery red light, low battery red light flashing | |
| Battery | Cell type | Lithium iron phosphate battery |
| Rated Capacity | 230Wh | |
| Q | 19.2V | |
| charging interface | DC plug 2.5mm | |
| Maximum charging current | 5A | |
| size | 220mm*170mm*30mm(Max) | |
| weight | 2.5kg | |
| Capactive Touch | multi touch | Support maximum touch points: ≦10 points |
| number of channels | 95 channels | |
| scanning frequency | Scanning rate and measuring capacitance change: ≥100KHZ | |
| Wake up response time ms | Time from finger touch to response: ≦15ms | |
| Touch accuracy mm | Deviation between real position and touch reflected position: ±2.0mm | |
| Linearity | Deviation of straight line touch: ±2.0mm | |
| touch separation mm | The distance between two points that can be distinguished: 15mm | |
| sensitivity | Sensitivity of touch screen (click≤φ6mm, slip≤φ6mm: uniformly≤1.5mm) | |
| temperature range | Working temperature: -10℃~60℃ | |
| Operating Voltage | DC5V | |
| Working power consumption | ≥1W | |
| Accessories | remote control | 1 |
| AAA batteries | 1 | |
| Power Adapter | 24V/5A | |
| capacitive stylus | 1 | |
| Mobile Display | 1 | |
| Features | 1. The shape is simple, the main body adopts geometric design, 2. Full-fit capacitor technology, compatible with Incell and Oncell, multi-channel capacitive touch, smooth touch writing. 3. Built-in large-capacity battery, 5 hours of normal working time (the actual use time will be affected by the temperature and the brightness/sound of the machine), 4. Charging breathing light display, power status indicator light display 5. Bionic natural tree design for mobile display racks 6. Support multi-angle display viewing. |
|
